PICKitPlus ZIF Prototyping Cradle

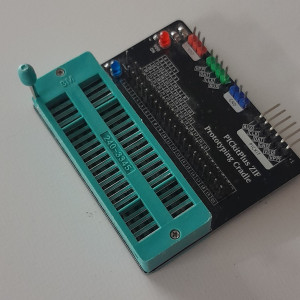

The PICKitPlus ZIF Prototyping Cradle is your perfect companion for seamless prototyping and programming of Microchip PIC microcontrollers.  Compact yet versatile, this 66x56mm board offers a reliable and more convenient alternative to traditional solderless breadboards.

Why Choose the PICKitPlus ZIF Cradle ?

With just a few standard 2.54mm female jumper wires, the ZIF Cradle adapts effortlessly to almost any PIC model, making it an indispensable tool for hobbyists and professionals alike.

Key Features at a Glance:

• Universal Compatibility: Equipped with a 40-pin universal ZIF socket, the Cradle accommodates all DIP packages up to 40 pins. Adapters are available for surface-mount packages such as SOIC or SSOP.

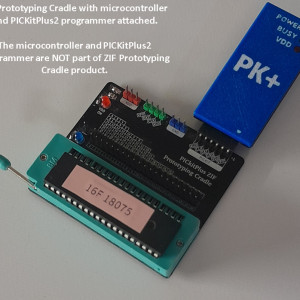

• Direct PICkit Connection: A dedicated header allows you to connect a PICkit directly to the Cradle for programming. Our very own PK+ units are also fully compatible.

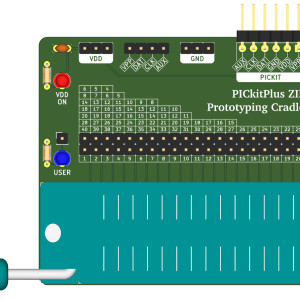

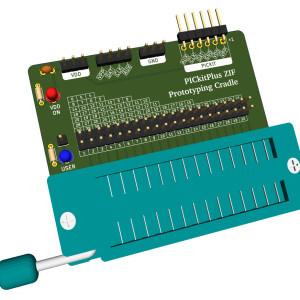

• Comprehensive Pin Access: VPP, DAT, CLK, and AUX pins are provided, along with three VDD and three GND pins for chips that require multiple connections. All chip pins are presented in a clearly labelled double row for hassle-free wiring.
• Dual LEDs for Feedback: A Power LED indicates VDD is active, whilst a User LED is available for custom tests, such as running a blink program.  Both LEDs are safeguarded with resistors.
• Enhanced Stability: The VDD supply is stabilised with an onboard 100nF capacitor for dependable operation.
• Use instantly: Supplied assembled the cradle and link cable.
• For Surface Mount: Please check before purchase to ensure an adapter is available for your specific PIC.
• Designed for:  Most PICs. Specifically ones that

  1. Have no more than 40 pins.
  2. Have no more than 3 VDD and 3 GND pins.
  3. Do not require any additional components, such as capacitors.

What to know more ?

See the ZIF Prototyping Cradle documentation here.

Why buy ?

Whether you are programming, testing, or prototyping, the PICKitPlus ZIF Prototyping Cradle offers unmatched convenience and versatility. Elevate your prototyping game today!

If you want one see  our buying page
