LCD Rucksack



What is it ?

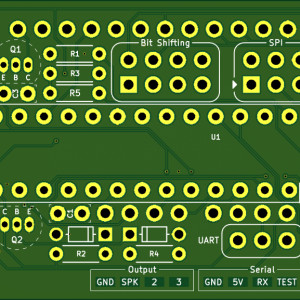

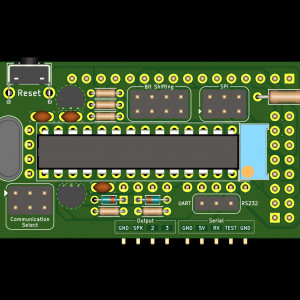

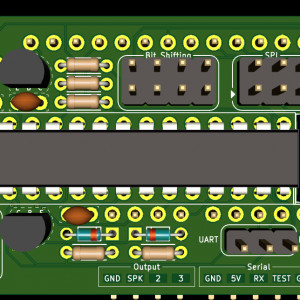

The LCD Rucksack Kit provides a simple interface to a standard LCD display. It is based upon a AVR Mega328p controller chip - you can communicate with the LCD Rucksack Kit  using USART, I2C or SPI.   It is highly versatile adapter that permits the easy addition of a LCD to any project.



What is the LCD Rucksack?

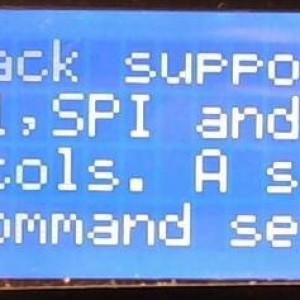

It is  the flexible way to connect an LCD to a microcontroller with the LCD Rucksack supporting I2C, SPI and Serial communications.   You set a few jumpers to choose the communications protocol.

It is a simple kit you can build and then use.  Provided with documentation and example code.



How do I build the LCD Rucksack?

Easy.  See this video https://youtu.be/RgG92GN0DfY the build should take about 40 minutes.



This user guide explains the LCD Rucksack User Documentation
